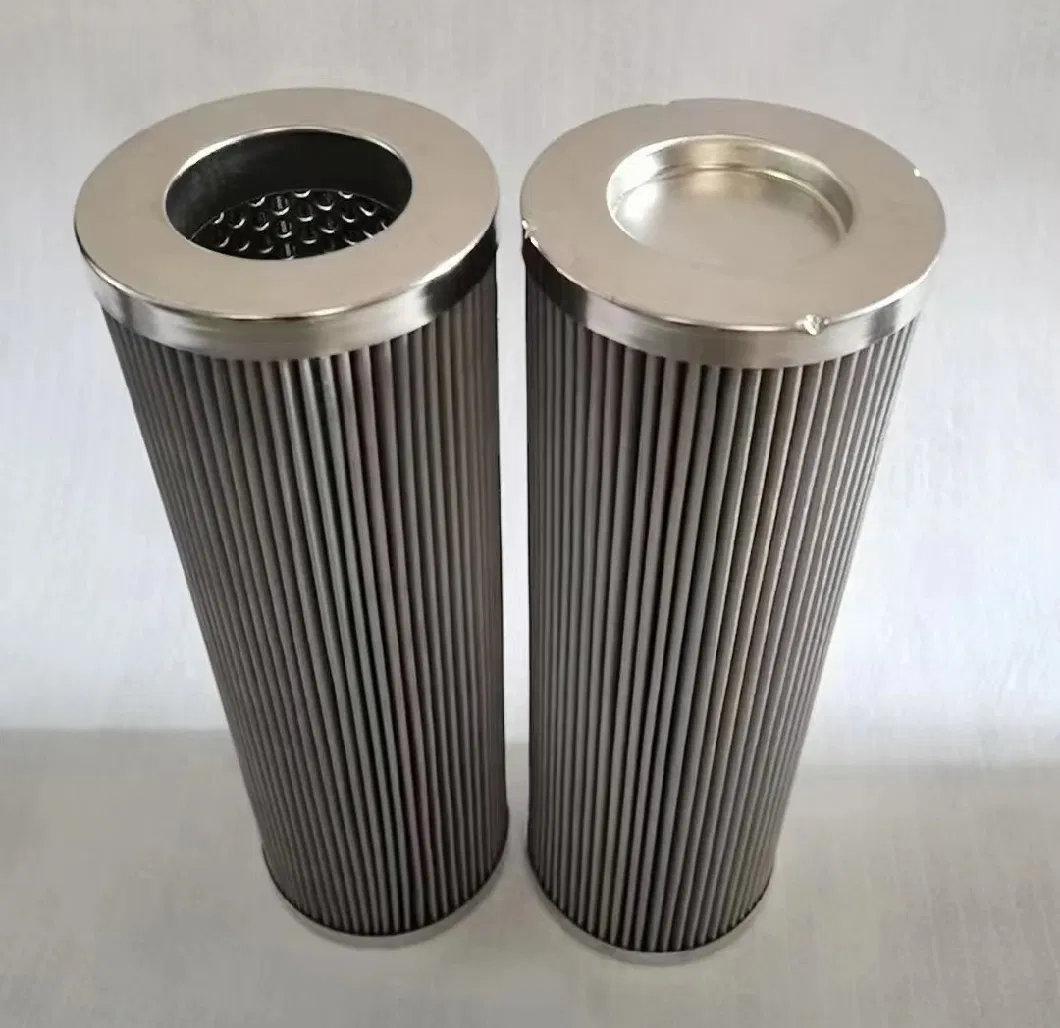

Quality Replacement Hydraulic Oil Filter Element

We can supply most of the manufacturers of filter accessories, complete model, the goods quickly, quality assurance. Limited space, not one by one show, if demand, please contact, thank you!

Air filtration, liquid filtration, gas filtration, hydraulic oil filtration, petroleum filtration,
dust filtration, coalescers, separators - we can all produce!
No matter which brand - we can produce!
No matter which model - we can produce!
You have needs - please contact us.

Supply Product Series:

-Hydraulic Filters & Element
-Precision Filter Element
-Air Compressor Filter
-Oil Purification Equipment & Element
-Other Filters & Hydraulic Accessories

Basically, hydraulic oil filter is a device containing three types of filter media layers, namely: metal, paper and micro glass elements. As hydraulic oil passes through the filter, it traps and removes particulate matter.

As a result, it prevents ingress of foreign particles that may cause damage to hydraulic system.


Working Principle of Hydraulic Oil Filter

Hydraulic fluid serves a number of purposes in hydraulic systems. Undoubtedly, its core role is to transfer force to the actuators from the hydraulic power unit. However, it also does the following: · To keep the system surface lubricated to avoid friction on metal surface on each other. · Maintain a conducive temperature by transferring from one end to the other. · Seals the hydraulic system through adhesion and surface tension.


Selection criteria of hydraulic filters depends upon:

* The maximum flow rate permissible through the filter.
* Maximum operating pressure that the filter can withstand.
* Port size of the inlet and outlet ports which need to connect to the hydraulic fluid system.
 Features of Hydraulic Oil Filter

· High resistance to variable operating pressures and flow rates · Wide range of micron rating∶ from 1μm to 500μm · Improved system reliability and lower maintenance costs · Customized hydraulic oil filters for specific filtration requests

· More pleats and surface area for a higher dirt-holding capacity

· Consistent filter efficiency to remove particles and water,even at a high differential pressure · Compatible with a wide range of fluid types,such as mineral oils, emulsions and most synthetic hydraulic oils
Description
(1)The quality and performance can be guaranteed as original elements.
(2)Filter accuracy: 1um, 3um, 5um, 10um, 20um, 25um, 40um, 50um, 80um, 100um, 150um, 200um
(3)Filter material: Glass fiber, filter paper, stainless steel wire mesh.
(4)End caps material: Carbon steel & stainless steel & Aluminum & Nylon & NBS.
(5) Temperature range: -4°F~212°F
(6) Collapse pressure rating: 21bar-210bar (Hydraulic Liquid Filtration)
(7) O-ring Material: VITON, NBR.
(8) Working medium: hydraulic oil

Explain Filters 0095d020w  0095D020BH4HC 0095D020BHHC 0095D020BN3HC 0095D020BN4HC 0095D020BNHC 0095D020W 0095D020WHC 0095D025W

0095 D        020     BN4HC  (1)     (2)       (3)           (4)

(1) Size 030----30L/min               060----60L/min            0110---110L/min              0140---140L/min            0160---160L/min              0240---240L/min            0330---330L/min              0480---480L/min            0500---550L/min              0660---660L/min            0950---950L/min              1300---1300L/min            2600---2600L/min             3900---3900L/min

(2) Pressure D---high pressure       100bar    210bar    420bar R---low pressure        16bar      25bar    30bar

(3) Filtration rating (micron): 001---1            003---3             005---5     010---10           020---20            025---25           050-50

(4) Media PS---Paper       V--Metal sintered felt    W---Metal mesh G---Stainless steel        U----Filtration paper         HC----Glass fiber

1.The quality and performance can be guaranteed as original elements.

2.Temperature Range -4°F~212°F
3.Seals: nitrile seals, fluorocarbon seals for corrosive fluids.
4.Collapse pressure rating 21bar-210bar (Hydraulic Liquid Filtration)
5.Filtering precision 3, 5, 10,20 and 50 micron.
6.Filter Medium: glass fiber, filter paper, stainless steel sinter fiber and stainless wire mesh.
7.Fluid Compatibility Compatible with all petroleum oils,water glycols, oil/water emulsions, high water base fluids,and synthetic fluids compatible with Fluoro Rubber or EPR

About us

We are  environmental protection equipment company integrating design, storage and sales. Our main products include filter, filter element, filtering equipment, hydraulic equipment, dust removal equipment, air purification equipment, desalination equipment, sewage treatment equipment, solid waste sorting equipment and oil purification equipment.
The company has its own factory in Henan, which has more than 16 years of production experience. Based on advanced production equipment and mature production system, we provide high-quality products with reasonable prices, which are exported to the United States, Russia, Germany, Spain, Canada, Malaysia, Thailand, Indonesia, India, Brazil, Mexico, South Korea and other countries.
