Hydraulic Filter Donaldson /Argo/Mahle Good Value for Money

Min. Order:	1 Piece/Pieces

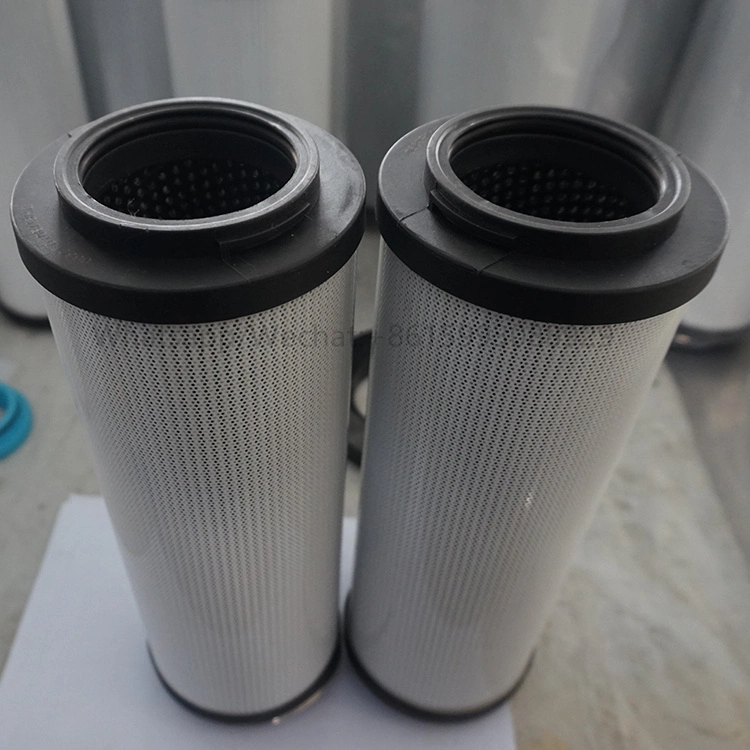

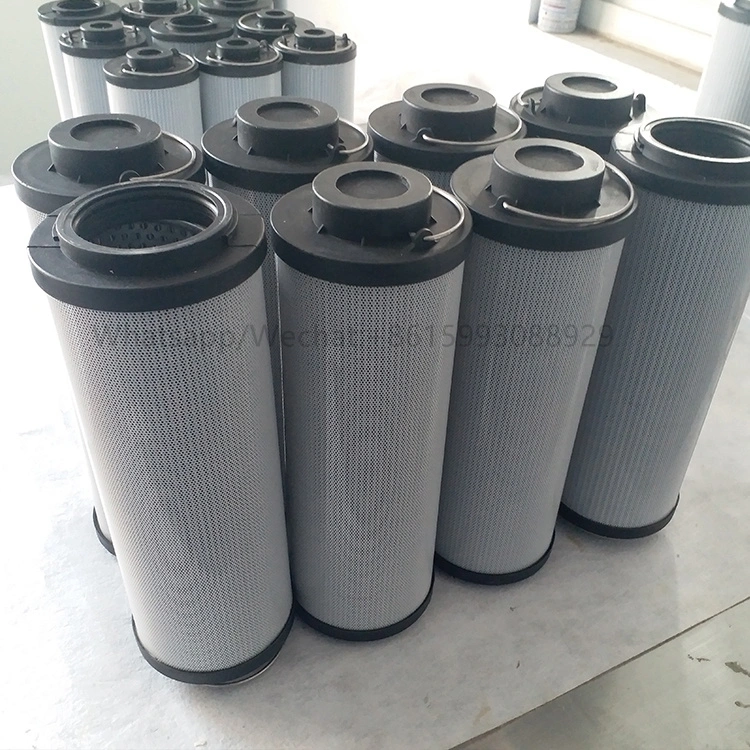

0660r010bn3hc 0660r010bn4hc hydraulic station filter for eaf punch head machine

What is a Hydraulic Oil filter?

Basically, hydraulic oil filter is a device containing three types of filter media layers, namely: metal, paper and micro glass elements. As hydraulic oil passes through the filter, it traps and removes particulate matter.

As a result, it prevents ingress of foreign particles that may cause damage to hydraulic system.

Working Principle of Hydraulic Oil Filter

Hydraulic fluid serves a number of purposes in hydraulic systems. Undoubtedly, its core role is to transfer force to the actuators from the hydraulic power unit. However, it also does the following: · To keep the system surface lubricated to avoid friction on metal surface on each other. · Maintain a conducive temperature by transferring from one end to the other. · Seals the hydraulic system through adhesion and surface tension.

Selection criteria of hydraulic filters depends upon:

* The maximum flow rate permissible through the filter.
* Maximum operating pressure that the filter can withstand.
* Port size of the inlet and outlet ports which need to connect to the hydraulic fluid system.

Features of Hydraulic Oil Filter

· High resistance to variable operating pressures and flow rates · Wide range of micron rating∶ from 1μm to 500μm · Improved system reliability and lower maintenance costs · Customized hydraulic oil filters for specific filtration requests

· More pleats and surface area for a higher dirt-holding capacity

· Consistent filter efficiency to remove particles and water,even at a high differential pressure · Compatible with a wide range of fluid types,such as mineral oils, emulsions and most synthetic hydraulic oils

Description
(1)The quality and performance can be guaranteed as original elements.
(2)Filter accuracy: 1um, 3um, 5um, 10um, 20um, 25um, 40um, 50um, 80um, 100um, 150um, 200um
(3)Filter material: Glass fiber, filter paper, stainless steel wire mesh.
(4)End caps material: Carbon steel & stainless steel & Aluminum & Nylon & NBS.
(5) Temperature range: -4°F~212°F
(6) Collapse pressure rating: 21bar-210bar (Hydraulic Liquid Filtration)
(7) O-ring Material: VITON, NBR.
(8) Working medium: hydraulic oil

NOTE:

All Of Filter Elements Are Not The Original Equipment Manufacturer's Product And Part numbers Are For Reference Only,The Filter Element Conforms To The Standard Specifications Of The Original Equipment Manufacturer's Product

Explain 0660r010bn3hc 0660r010bn4hc

0660 R 010 BN3HC

(1) (2) (3) (4)

(1) Size 030----30L/min 060----60L/min

0110---110L/min 0140---140L/min

0160---160L/min 0240---240L/min

0330---330L/min 0480---480L/min

0500---550L/min 0660---660L/min

0950---950L/min 1300---1300L/min

2600---2600L/min 3900---3900L/min

(2) Pressure

D---high pressure 100bar 210bar 420bar

R---low pressure 16bar 25bar 30bar

(3) Filtration rating (micron):

001---1 003---3 005---5 010---10 020---20 025---25 050-50

(4) Media

PS---Paper V--Metal sintered felt W---Metal mesh
G---Stainless steel U----Filtration paper HC----Glass fiber

1.The quality and performance can be guaranteed as original elements.
2.Temperature Range -4°F~212°F
3.Seals: nitrile seals, fluorocarbon seals for corrosive fluids.
4.Collapse pressure rating 21bar-210bar (Hydraulic Liquid Filtration)
5.Filtering precision 3, 5, 10,20 and 50 micron.
6.Filter Medium: glass fiber, filter paper, stainless steel sinter fiber and stainless wire mesh.

7.Fluid Compatibility Compatible with all petroleum oils,water glycols, oil/water emulsions, high water base fluids,and synthetic fluids compatible with Fluoro Rubber or EPR

We are environmental protection equipment company integrating design, storage and sales. Our main products include filter, filter element, filtering equipment, hydraulic equipment, dust removal equipment, air purification equipment, desalination equipment, sewage treatment equipment, solid waste sorting equipment and oil purification equipment.

The company has its own factory in Henan, which has more than 16 years of production experience. Based on advanced production equipment and mature production system, we provide high-quality products with reasonable prices, which are exported to the United States, Russia, Germany, Spain, Canada, Malaysia, Thailand, Indonesia, India, Brazil, Mexico, South Korea and other countries.

Related Filter Elements Part Numbers

HC2207FCS6H	HC2618FCN18H	HC6200FCS8H	HC6400FDS16H	HC7400SCS4H	HC7500SWT8H
HC8300FKP16H	HC8304FCN39Z	HC8400FCS16H	HC8500FKS13H	HC8900FCP13H	HC9021FCP4Z
HC9021FDS8Z	HC9100FKS13H	HC9600FCN13H	HC9601FCP13H	HC9650FKN8Z	HC9800FCP4H
0030D010BN4HC	0060D010BN4HC	0095D010BN4HC	0110D010BN4HC	0140D005BH4HC	0160D010ON
0240D010BN4HC	0330D010BN4HC	0280D010ON	0660D010BN4HC	0800D010BN4HC	0990D010BN4HC
0110R020ON	0160R010BN4HC	0165R010BN3HC	0240R050W/HC	0330R005ON	0660R005ON
0850R025W/HC	1300R010BN4HC	1700R020ON/KB	2600R025W/HC	N5DM005	N15DM010
D111G10A	D112G10A	D120G10A	D121G25A	D142G06A	D153G10A
D310G10A	D650G03A	D720G25A	D820G25A	D821G25A	D840G25A
DHD30G10B	DHD60G10B	DHD75G10B	DHD95G10	DHD280G10	DHD110G10B
DHD140G10B	DHD160G10B	DHD240G10B	DMD0005F10B	DMD0008D10B	DMD0015E10B
FS111B3T125	FS121B5T125	FS133B7T125	FS162B4T250	FS176B6T125	FS181B8T125
R110G10B	R120G25B	R130C10B	R143G10B	R160G10B	R220G25
R424G10	R452G06	R612G10	R650G10	R732G10	R742G10
RHR160G10B	RHR165G20B	RHR240G10B	RHR330G10B	RHR660G20B	RHR850G10B
01.E 30.10VG.30.E.P.-	01.E 60.10VG.30.E.P.-	01.E 90.10VG.30.E.P.-	01.E 150.10VG.30.E.P.-	01.E 170.10VG.30.E.P.-	01.E 240.10VG.HR.E.P.-
01.E 360.10VG.30.E.P.-	01.E 450.10VG.HR.E.P.-	01.E 600.10VG.30.E.P.-	01.E 900.10VG.HR.E.P.-	01.E 70.10VG.16.E.P.-	01.E 120.10VG.16.S.P.-
01.E 175.10VG.16.E.P.-	01.E 210.10VG.16.S.P.-	01.E 320.10VG.16.E.P.-	01.E 330.10VG.16.S.P.-	01.E 425.10VG.16.E.P.-	01.E 950.10VG.10.S.P.-
01.E 2001.10VG.10.E.P.-	01.N 100.10VG.16.E.P.-	01.NL 40.10VG.30.E.P.-	01.NL 63.10VG.HR.E.P.-	01.NL 250.10VG.30.E.P.-	01.NL 400.10VG.30.E.P.-
01.NL 630.10VG.30.E.P.-	01.NL 1000.10VG.30.E.P.-	01.NR 250.10VG.10.B.P.-	01.NR 400.10VG.10.B.P.-	01.NR 630.10VG.10.B.P.-	01.NR 1000.10VG.10.B.P.-
PI1008MIC25	PI1015MIC25	PI1108MIC10	PI2115SMX3	PI2205SMVST3	PI2230PSVST3
PI3105SMX10	PI3111SMX10	PI3115PS10	PI3130SMX10	PI3145SMX10	PI3208SMXVST10
PI4111SMX25	PI4115PS25	PI4230PSVST25	PI5115SMX6	PI8145DRG10	PI8330DRG40
PI8415DRG60	PI8505DRG100	PI22063DNSMX6	PI23016DNSMX10	PI23040DNPS10	PI23063DNPS10
936973Q	937109Q	937931Q	938188Q	938297Q	938355Q
PR2798Q	PR2855Q	PR2863Q	PR2885Q	PR4506Q	G01954Q
G01938Q	170-L-222A	270-L-223A	370-L-222A	FC5000.Q020.BS	FC7006.Q010.BK
1.0045 H10XL-A00-0-M	1.0063 H10XL-A00-0-M	1.0100H10XL-A00-0-M	1.0400 H10XLA00-0-M	1.1000 H10XL-A00-0-M	1.1400 G25-A00-0-M
2.0015 G40-A00-0-M	2.0040 H10XL-A00-0-M	2.0100 H10XL-A00-0-M	2.0130 G40-A00-0-M	2.0160 H10XL-A00-0-M	2.0250 H20XL-A00-0-M
V2.1234-26	V3.0510-06	V5.1240-07	S2.0920-05	S3.1017-10	W3.0623-08
HP21L4-2MB	HP27HL4-3MB	HP37HL8-3MB	HP125HL3-10MB	HP151L4-3MB	HP251L7-3MB
PH312-12-CG	PH718-01-CN	PH718-05-CN	PH720-01-CG	PH739-01-CG	PH739-03-CG
SFN-08-150K	SFN-10-150K	SFN-12-150K	SFT-10-100W	SFT-12-150W	SFT-16-100W
P-UL-08A-40UW	P-UL-12A-40U	P-UL-20B-10U	P-UM-06A-20U	P-UM-03-20UW	P-UM-06A-20UW
CU100M25N	CU250M25N	CU350A25N	CU630A06N	CU630M90N	HP0505A10ANP01
HP0651A10ANP01	HP0653A10ANP01	HP1353A10ANP01	MF1002M60NBP01	MF4002P10NBP01	MPA045M90
MPA075G1M9	MPA220G1M90	MR1003A25A	MR2503A25A	CH-070-P10-A	CS-150-M60-A

Why Choose Us

· Professional manufacturer with many years' experience
· Good quality with competitive price
· OEM & ODM are welcome
· Produce according to your sample or drawing
· Various payment items are acceptable
· Good service by experienced manager
· Each product is individually under strict inspection
· On-time delivery

· Small MOQ is acceptable
