Stainless Steel Filter for Filtering Chemical Reagent Good Value for Money

Min. Order:	1 Piece/Pieces

Basic Info.

Product Description

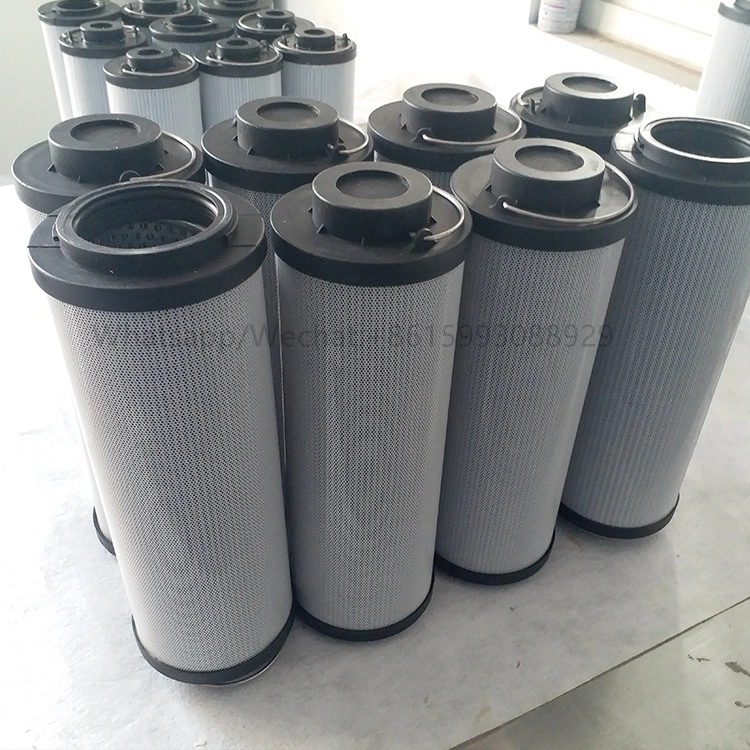

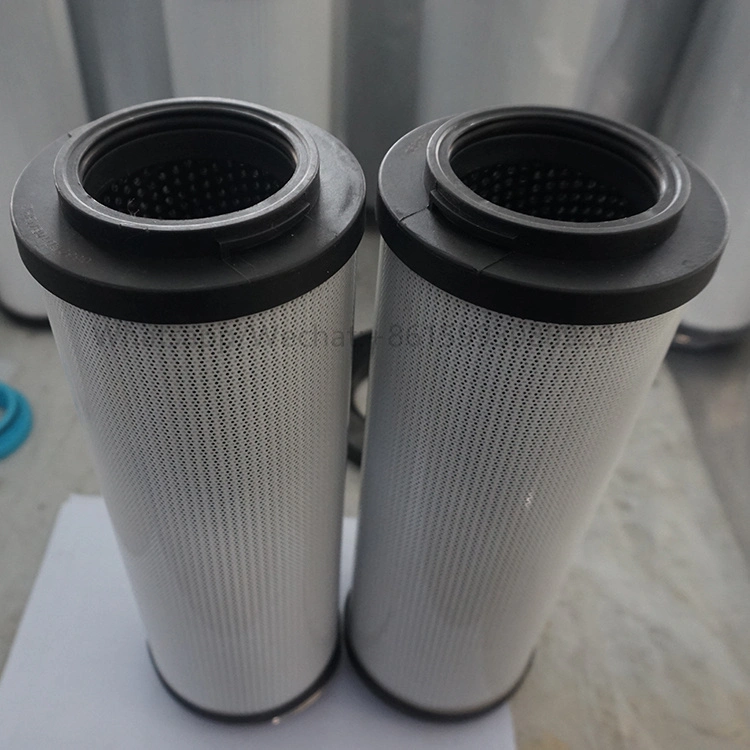

High Efficiency Return Oil Filter Industrial Hydraulic Filter Element 0500r010bn3hc 1263005 0500r010bn4hc hydraulic oil transfer pump with filter element

What is a Hydraulic Oil filter?

Basically, hydraulic oil filter is a device containing three types of filter media layers, namely: metal, paper and micro glass elements. As hydraulic oil passes through the filter, it traps and removes particulate matter.

As a result, it prevents ingress of foreign particles that may cause damage to hydraulic system.

Working Principle of Hydraulic Oil Filter

Hydraulic fluid serves a number of purposes in hydraulic systems. Undoubtedly, its core role is to transfer force to the actuators from the hydraulic power unit. However, it also does the following: · To keep the system surface lubricated to avoid friction on metal surface on each other. · Maintain a conducive temperature by transferring from one end to the other. · Seals the hydraulic system through adhesion and surface tension.

Selection criteria of hydraulic filters depends upon:

* The maximum flow rate permissible through the filter.
* Maximum operating pressure that the filter can withstand.
* Port size of the inlet and outlet ports which need to connect to the hydraulic fluid system.

Features of Hydraulic Oil Filter

· High resistance to variable operating pressures and flow rates · Wide range of micron rating∶ from 1μm to 500μm · Improved system reliability and lower maintenance costs · Customized hydraulic oil filters for specific filtration requests

· More pleats and surface area for a higher dirt-holding capacity

· Consistent filter efficiency to remove particles and water,even at a high differential pressure · Compatible with a wide range of fluid types,such as mineral oils, emulsions and most synthetic hydraulic oils

Description
(1)The quality and performance can be guaranteed as original elements.
(2)Filter accuracy: 1um, 3um, 5um, 10um, 20um, 25um, 40um, 50um, 80um, 100um, 150um, 200um
(3)Filter material: Glass fiber, filter paper, stainless steel wire mesh.
(4)End caps material: Carbon steel & stainless steel & Aluminum & Nylon & NBS.
(5) Temperature range: -4°F~212°F
(6) Collapse pressure rating: 21bar-210bar (Hydraulic Liquid Filtration)
(7) O-ring Material: VITON, NBR.
(8) Working medium: hydraulic oil

NOTE:

All Of Filter Elements Are Not The Original Equipment Manufacturer's Product And Part numbers Are For Reference Only,The Filter Element Conforms To The Standard Specifications Of The Original Equipment Manufacturer's Product

Explain 0500r010bn3hc 1263005 0500r010bn4hc hydraulic oil filter element

0500 R 010 BN3HC

(1) (2) (3) (4)

(1) Size 030----30L/min 060----60L/min

0110---110L/min 0140---140L/min

0160---160L/min 0240---240L/min

0330---330L/min 0480---480L/min

0500---550L/min 0660---660L/min

0950---950L/min 1300---1300L/min

2600---2600L/min 3900---3900L/min

(2) Pressure

D---high pressure 100bar 210bar 420bar

R---low pressure 16bar 25bar 30bar

(3) Filtration rating (micron):

001---1 003---3 005---5 010---10 020---20 025---25 050-50

(4) Media

PS---Paper V--Metal sintered felt W---Metal mesh
G---Stainless steel U----Filtration paper HC----Glass fiber

1.The quality and performance can be guaranteed as original elements.
2.Temperature Range -4°F~212°F
3.Seals: nitrile seals, fluorocarbon seals for corrosive fluids.
4.Collapse pressure rating 21bar-210bar (Hydraulic Liquid Filtration)
5.Filtering precision 3, 5, 10,20 and 50 micron.
6.Filter Medium: glass fiber, filter paper, stainless steel sinter fiber and stainless wire mesh.
7.Fluid Compatibility Compatible with all petroleum oils,water glycols, oil/water emulsions, high water base fluids,and synthetic fluids compatible with Fluoro Rubber or EPR
